16Ch RS485 Temperature Collector Modbus RTU Paperless Recorder 10K/20K/50K/100K B3950 NTC Sensor (1PCS 10K Mainboard)

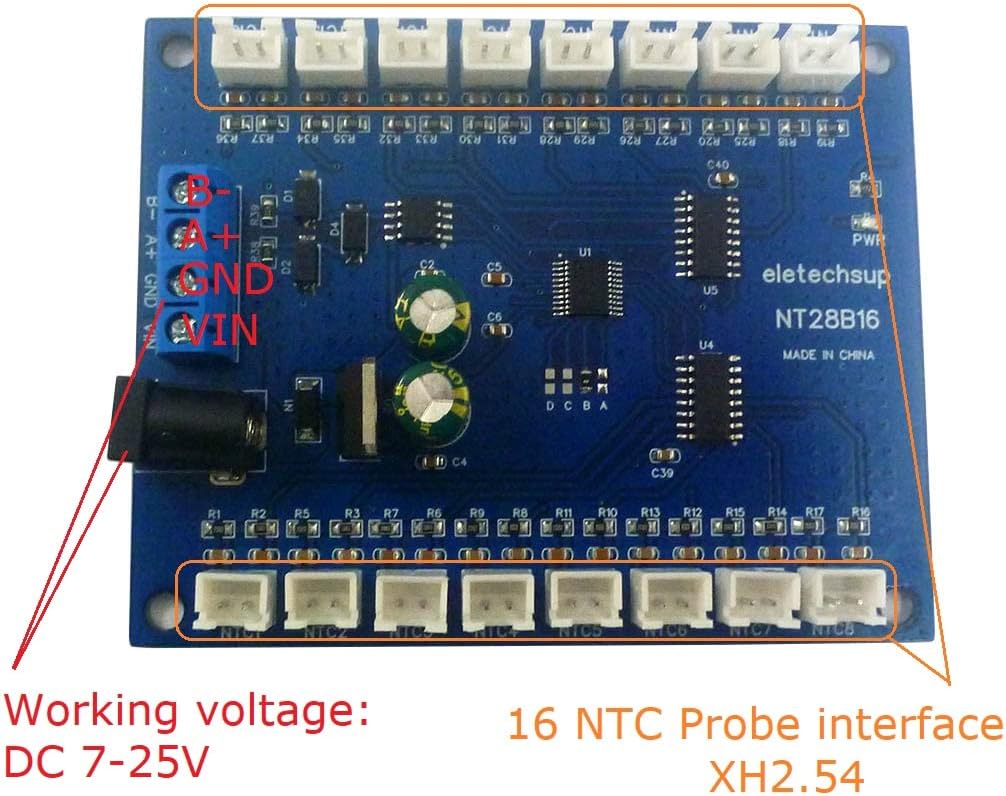

Product Name:16Ch RS485 Temperature Collector Modbus RTU Paperless Recorder 10K/20K/50K/100K B3950 NTC SensorPacking list(Please select the product you need):1 pcs 16CH NT28B16 RS485 NTC Temperature sensor BoardOR 8 PCS NTC NTC Temperature sensorDescription :Features:1: Operating Voltage : DC 7-25V(DC 9V 12V 15V 24V)2: Operating Current :10-25MA(depending on the number of external NTCs)3: MODBUS RTU Command support 03 06 function code4:Serial port baud rate: 9600 (default), N, 8, 15:By modifying the RS485 address, up to 247 modules can be cascaded (more than 16 please use R485 repeater)6:Adapted sensor:10K/20K/50K/100K B3950 1% NTC thermistor, Up to 16 NTC sensors can be connected at the same time7:Temperature measurement range (using our NTC sensor): -20 ° C to +125 ° C.8:Temperature measurement accuracy (using our NTC sensor): 1%.9 :Size: 90 *72 * 14mm10 :Weight: 37 gNT28B16 can be used to measure temperature with NTC, and it can also be used to measure common resistance value. Different versions have different measurement ranges.10K version: 1K ohm-100K ohm;20K version: 2K ohm-200K ohm;50K version: 5K ohm-500K ohm;100K version: 10K ohm-1000K ohmModbus RTU Command Please refer to : '' NT28B16 modbus rtu protocol''NTC sensor specifications:Product Name: 5*25mmNTC Waterproof ProbeTotal length : 50CMResistance value: 10K/20K/50K/100K(optional)Resistance accuracy: ±1%Resistance B value: 3950 ± 1%Temperature range: -20 ° C -125 ° CWire size: 2651 26# parallel line temperature 105 °CPlug model: XH2.54-2PNote:1 This module does not have an NTC sensor. The NTC sensor needs to be purchased separately (10K/20K/50K/100K B3950 1%);The module's measured resistance value is 1%, and the theoretical temperature range is -273s~200°C. The final temperature measurement accuracy and temperature range are determined by NTC thermistor.2 There are four different versions, be sure to use the corresponding sensor (10K/20K/50K/100K B3950 1%), otherwise the temperature will not be accurateRS485 bus wiring diagram:

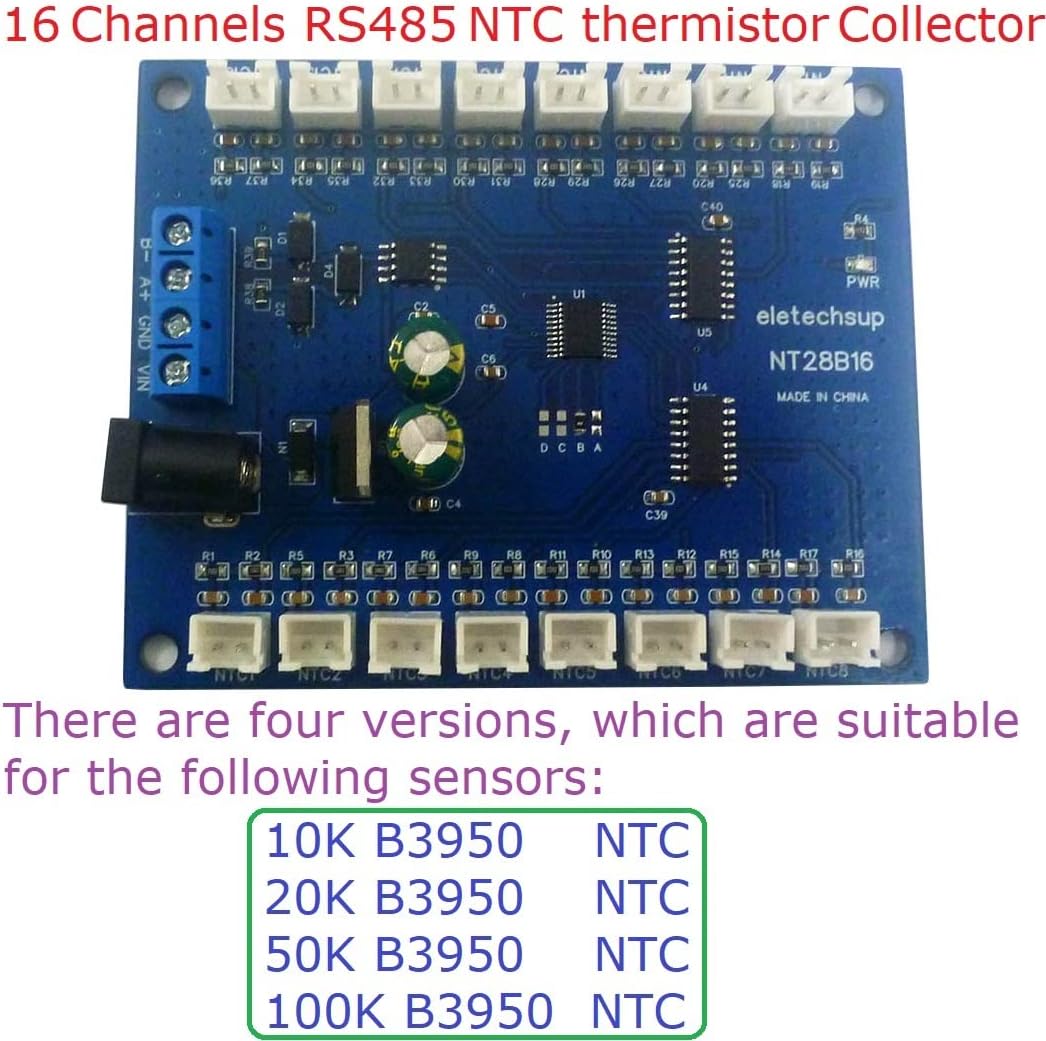

• Note:There are four different versions, be sure to use the corresponding sensor (10K/20K/50K/100K B3950 1%), otherwise the temperature will not be accurate

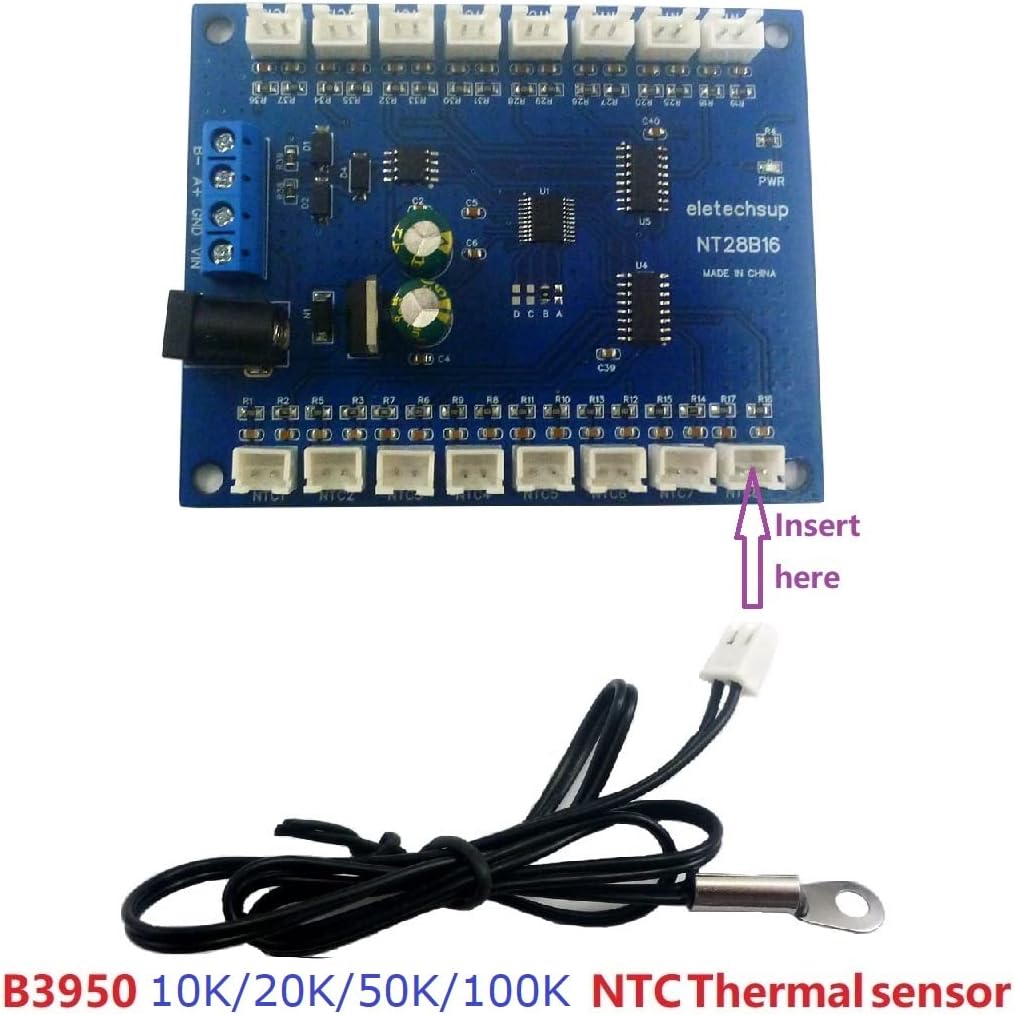

• Note:This module does not have an NTC sensor. The NTC sensor needs to be purchased separately (10K/20K/50K/100K B3950 1%);The module's measured resistance value is 1%, and the theoretical temperature range is -273s~200°C. The final temperature measurement accuracy and temperature range are determined by NTC thermistor.
• Serial port baud rate: 9600 (default), N, 8, 1

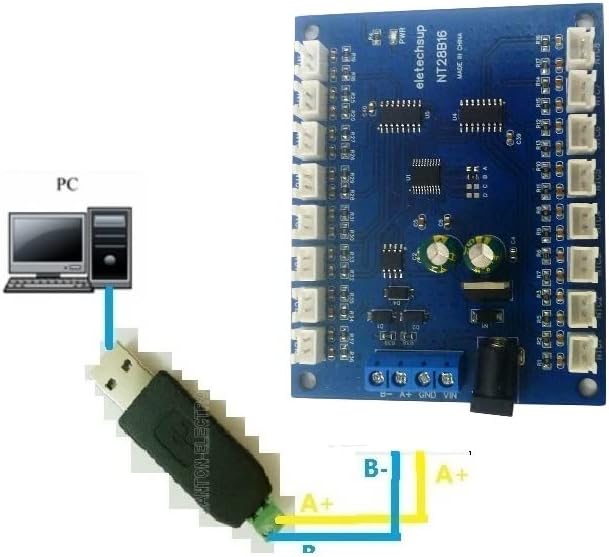

• By modifying the RS485 address, up to 247 modules can be cascaded (more than 16 please use R485 repeater)

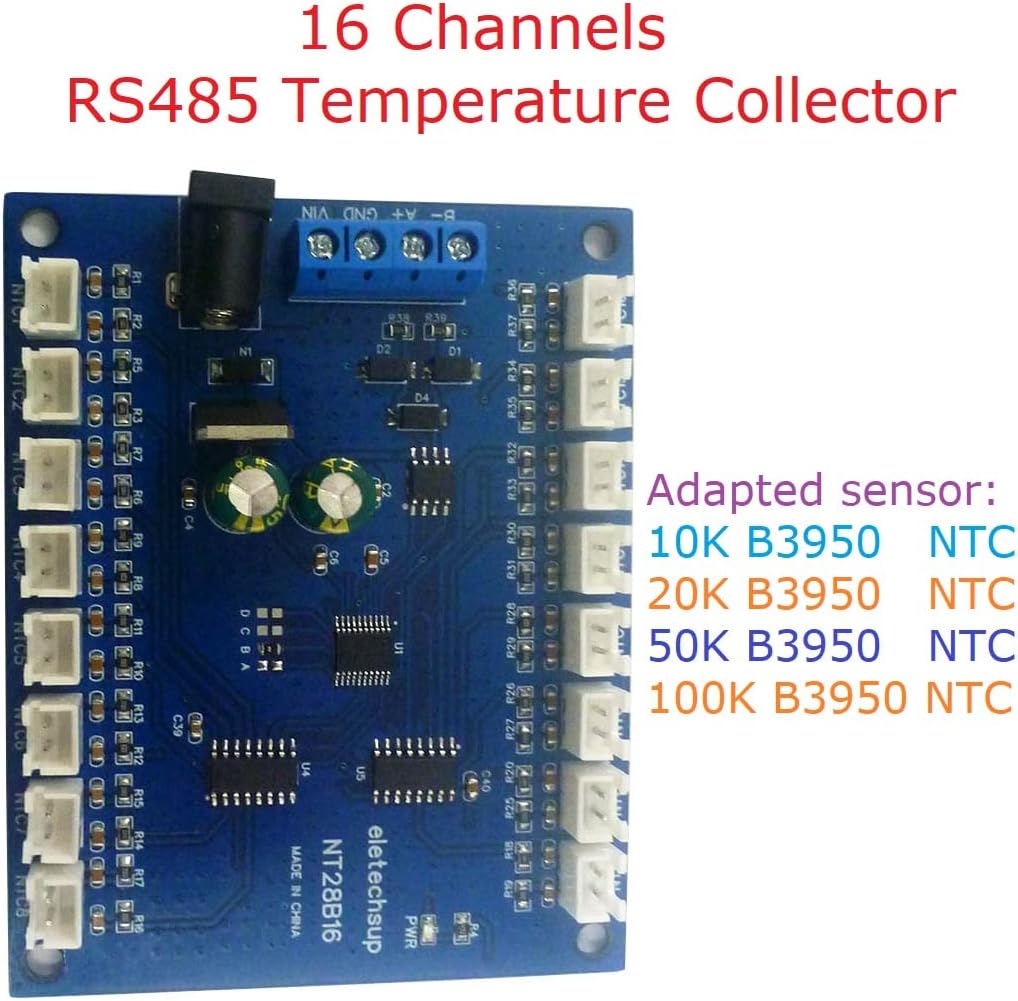

• Adapted sensor:10K/20K/50K/100K B3950 1% NTC thermistor, Up to 16 NTC sensors can be connected at the same time
